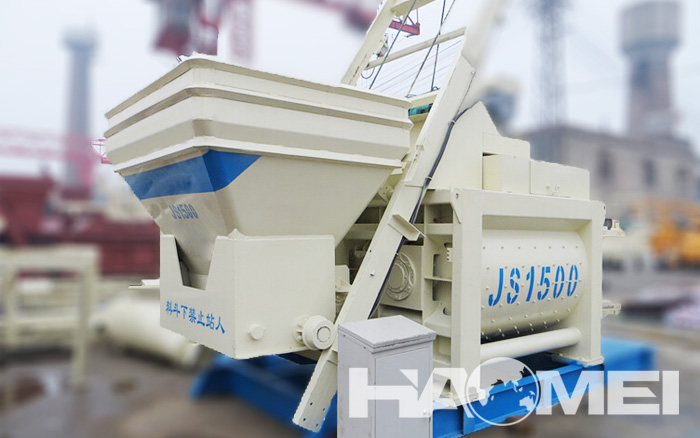

JS1500 Diesel Concrete Mixer
Place of Origin: Henan, China (Mainland)
Brand Name: HAOMEI
Model Number: JS1500
Condition: New
Motor Power 45kw
Mixing Power 45kw
Charging Capacity 2400L
Reclaiming capacity 1500L
Speed of Mixing Drum 23r/min
Water Supply Mode water pump
Working Cycle Period 60s
Discharge Way hydraulic
Outline Dimension 5058x2250x2440mm
Weight 10960kg
Production capacity 90m3/h
JS1500 diesel concrete mixer is a multi-functional mixer, which can be applied to mix dry-hard concrete, plastic concrete, light aggregate concrete and all kinds of mortar.
This mixer has characteristics of simple structure, high mixing quality, high efficiency, energy-saving, low noise, simple operation, and can be used together with dump car, truck and concrete mixer truck, so it's the ideal machine for construction sites, large and medium-sized concrete factories.
Technical parameters of JS1500 diesel concrete mixer
| Parameter Model | JS500 | JS750 | JS1000 | JS1500 | |
| Item | |||||
| Discharge volume | 500L | 750L | 1000L | 1500L | |
| Charging volume | 800L | 1200L | 1600L | 2400L | |
| Theoretical capacity | ≥25m3 | ≥35m3 | ≥50m3 | ≥75m3 | |
| Aggregate sizes | ≤60/80mm | ≤60/80m | ≤60/80mm | ≤60/80mm | |
| Working circle | 60s | 60s | 60s | 60s | |
| Mixing blade | Speed | 35r/min | 30.5r/min | 25.5r/min | 23r/min |
| Quantity | 2×7 | 2×8 | 2×8 | 2×9 | |
| Mixing motor | Model | Y180M-4 | Y200L-4 | Y225S-4 | Y225M-4 |
| Power | 18.5 kw | 30 kw | 37 kw | 45 kw | |
| Lifting motor | Model | YEZ132S-4 | YEZ132M-4 | YEZ160L-4 | YZE180M-4 |
| Power | 5.5 kw | 7.5 kw | 11 kw | 18.5 kw | |
| Pump motor | Model | 50DWB20-8A | 65DWB35-5 | KQW65-100 | KQW65-100 |
| Power | 0.75 kw | 1.1 kw | 3 kw | 3 kw | |
| Weight | 1500kg | 6150kg | 9880kg | 10960kg | |
|
Dimensions (L x W x H)mm |
3030x2300x2680 | 4550x2250x2450 | 4640x2250x2250 | 5058x2250x2440 | |
