Mobile Concrete Mixing Station

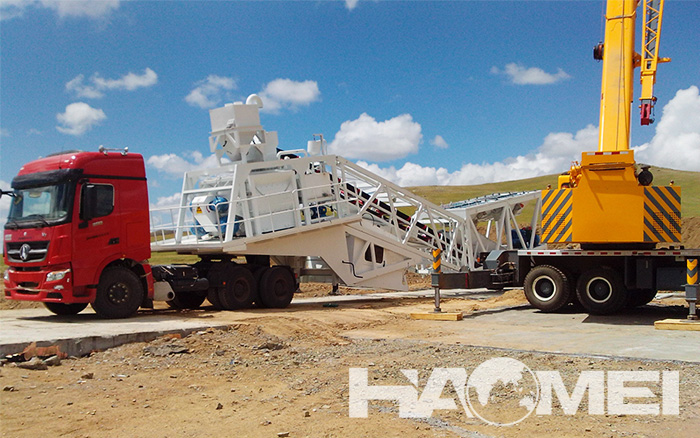

YHZS25 Mobile Concrete Mixing Station

YHZS25 mobile concrete mixing station is a new type readymix batching equipment which is movable by trailing. It is uniquely and novelly designed with a simple and compact structure. One trailing unit assembles a whole working set of aggregating, weighing, conveying and mixing system, enabling it great overall mobility. By absorbing new technologies from overseas and domestic, the mobile concrete batching plant has such characteristics as accurate weighing, homogeneous and efficient mixing, fast and clean delivery, convenient to move and operate, safe trailing, etc. It is the ideal choice for projects that require frequent movement from one construction site to another.



Item YHZS25(3.8m)
theoretical productivity 25m3/h
weighing scale  concrete 2000kg
  cement 510kg
  water 150kg
  liquid addictive 15kg
overall power about 60KW
(optional parts not included)
power source 380V/50HZ
discharging height 3.8m
overall weight 20t(optional parts not included)
trail speed ≤40km/h
specification
(LxWxH)
during work 17x3.6x8.2m
  during transportation 17.6x2.4x4.35m
