Mobile Concrete Mixing Station

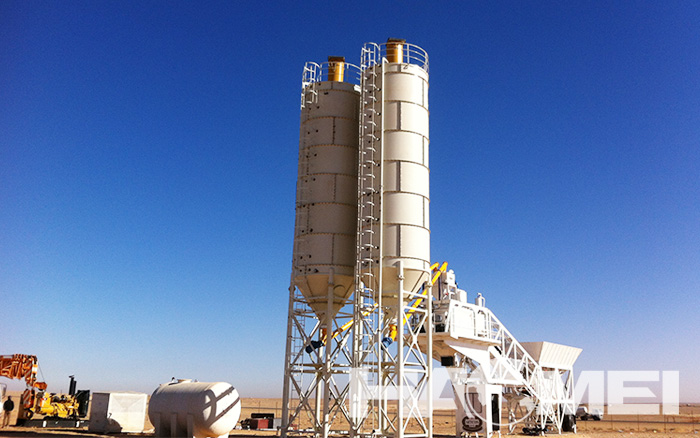

YHZS60 Mobile Concrete Mixing Station

YHZS60 mobile concrete mixing station is special construction concrete equipment designed by our company as module. It is applied for airport way, wharf, road, bridge and so on, It can also be used for the large and emergency repair construction operation. It can be installed quickly on site. This mixing plant is consisted by mixer, batching system, feeding system, weighing system, cement silo, screw conveyor and all the necessary equipment, and they are designed as module .So We can deliver YHZS series concrete plant easily by container, and install quickly on site and get it to run without debugging. This equipment has the characteristic of high automatic, well mixing, high productivity, high flexibility, convenient operation, and good stability.

Item YHZS60(3.8m)
theoretical productivity 60m3/h
weighing scale  concrete 3000kg
  cement 720kg
  water 360kg
  liquid addictive 36kg
overall power about 85KW
(optional parts not included)
power source 380V/50HZ
discharging height 3.8m
overall weight 24t(optional parts not included)
trail speed ≤40km/h
specification
(LxWxH)
during work 17.7x3.6x8.2m
  during transportation 18.3x2.4x4.35m
