Mobile Concrete Mixing Station

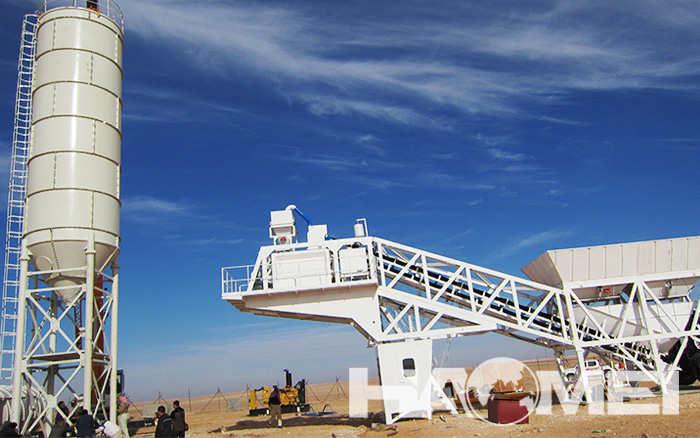

YHZS75 Mobile Concrete Mixing Station

YHZS75 mobile concrete mixing station with running system is special construction concrete equipment designed independently by our company. It can be installed quickly on site. This mixing plant integrate mixer, batching system, running system, feeding system, weighing system, cement silo, screw conveyor and all the necessary equipment into together, installing on a transport chassis. We can deliver YHZSA series concrete plant to construction site in the hauling situation, then install quickly on site and get it to run without debugging. This equipment has the characteristic of high automatic, well mixing, high productivity, high flexibility, convenient operation, and good stability. By absorbing new technologies from overseas and domestic, the mobile concrete mixing plant has such characteristics as accurate weighing, homogeneous and efficient mixing, fast and clean delivery, convenient to move and operate, safe trailing, etc.

Item YHZS75(3.8m)
theoretical productivity 75m3/h
weighing scale  concrete 3750kg
  cement 900kg
  water 450kg
  liquid addictive 45kg
overall power about 105KW
(optional parts not included)
power source 380V/50HZ
discharging height 3.8m
overall weight 27t(optional parts not included)
trail speed ≤40km/h
specification
(LxWxH)
during work 18.1x3.6x8.2m
  during transportation 18.6x2.4x4.35m
