Arrangement of aggregate in HZS180 concrete batching plant

HZS180 concrete batching plant produces concrete of various specifications and is widely used in plastics, such as large and medium-sized projects, road and bridge projects, high-quality concrete prefabrication plants, large-scale construction projects, road and bridge construction and dry and hard commercial concrete production selection equipment units.

In order to improve the performance of concrete mixer, JS3000 diesel concrete mixer chooses mixing, through mixing cylinder device, transmission, hydraulic pump station, automatic lubrication device, mixing and other cover parts. Hydraulic unloading door has automatic and manual selection in case of emergency power outage, which can be manually opened. Axis seal with automatic lubrication system and import components of lubrication system are used.

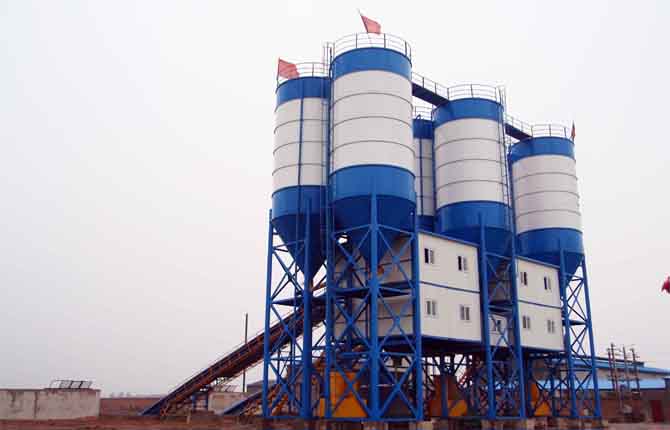

This stationary concrete batching plant is mainly composed of material supply system, material metering system, mixing system and control system. The electronic measurement, dynamic picture, storage ratio, automatic compensation gap and automatic printing function are controlled by computer. It can be realized manually and semi-automatically.

Arrangement of aggregate in HZS180 stationary concrete batching plant

1. four PLD4800 position batching machine. 4 cubic meters, the number of groups is 4,2. Tension sensor, specification is 2T, group number is 123. Weighing Bucket, Volume 2. 65 cubic meters. Horizontal belt conveyor, specifications are 32700 mm*1000mm, quantity is 15. Vibrator, the instruction is 180W, the quantity is 10.

2. Configuration information of other HZS180 concrete batching plant, such as mixing console, driving motor, reducer, aggregate and unloading device, cement metering device, fly ash of the quantitative feeding device, water weighing device, additive of the weighing device, main peripheral equipment in pneumatic control system, computer control system, dust recovery, concrete hopper, operating room and bracket, snail, etc. Rotary conveyor, dust and arch crushing, cement bin, concrete pump.
