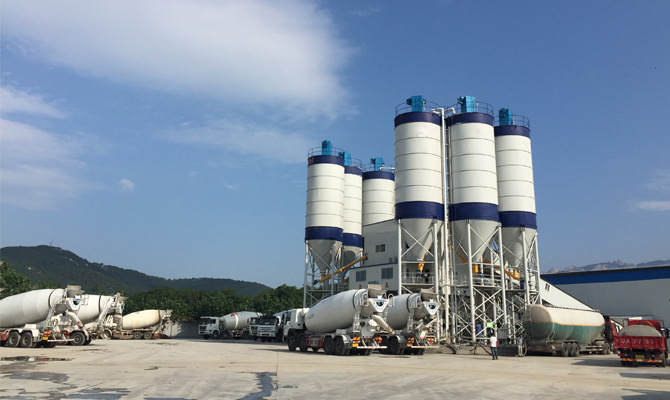

The components of HZS180 stationary concrete batching plant
What are the components of HZS180 stationary concrete batching plant?
HZS180 stationary concrete batching plant production line belongs to the production line of large concrete batching plant. When purchasing, we must first consider our own strength and market demand, and then buy it.
HZS180 stationary concrete batching plant main configuration:
(1) One PLD4800 batching machine
(2) One belt conveyor with small inclination and long angle (double platform)
(3) One JS3000 diesel concrete mixer
(4) Water scale, cement scale, additive scale and fly ash scale
(5) Electrical control system (with computer management and printing system, video surveillance system, internal communication system)
(6) One of the three major modular steel structures
(7) Three 100t cement silos and two 100t fly ash silos
(8) Five LSY315-12M screw conveyors
HZS180 concrete batching plant is designed and manufactured for commercial concrete producers. Material selection is exquisite, performance is superior, encapsulated tightly, comfortable and environmentally friendly. It is a apa itu batching plant that adapts to the market trend and has the characteristics of the times.
The main machine of HZS180 production line adopts JS3000 double horizontal axle forced concete mixer, axle end equipped with automatic oil pressure lubrication system, indoor equipped with monitoring and alarming device, oil pressure control unloading door, high chromium wear-resistant cast iron liner and shovel, life can reach 60,000 cans.
HZS180 concrete batching plant production line adopts large square steel as main support and main structure frame, which is compacted and durable; EPS benzol slate rock wool sandwich composite plate is used as encapsulation for main body and control room; and centralized dust removal device is installed, control room is spacious and bright, with air conditioning: module combination, convenient transportation and flexible installation.
HZS180 concrete concrete batching plant production line uses electronic scale to measure all materials: water, additives (liquid), cement, fly ash (or powder additives) are measured separately; four kinds of aggregates can be stored, and all of them are measured separately, with the function of fine scale, the burden scale is arranged on the ground and underground optionally; the protective cover of the feeding belt machine is installed with overhaul gallery, and there are tensioning mechanism, cleaning device and anti-falling sand (stone) slide board.
HZS180 concrete batching plant production line adopts computer control management system, imported components and multi-point video surveillance device. Strong stability and reliability.
If you want to know the price and more configuration of this construction cement batching plant, you can contact me (Email:sarah@concretebatchplant24.com) directly or visit our factory.
