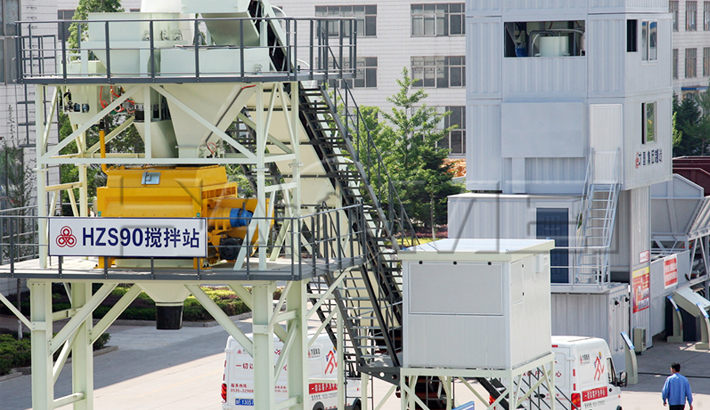

The output of HZS90 stationary concrete batching plant
Let's first look at the technical parameters of the HZS90 stationary concrete batching plant.
Model | HZS90 | |
Specification | Unit | Value |
Productivity | m3/h | 90 |
Capacity of Mixer | m3 | 1.5 |
Mix Power | kw | 44 |
Discharge Height | m | 3.8 |
Aggregate Bin | Quantity | 4 |
Aggregate Bin Capacity | m3 | 2.4 |
Max. Weighing Value of Aggregate | kg | 6000Kg |
Max. Weighing Value of Cement | kg | 1000Kg |
Max. Weighing Value of Water | kg | 500Kg |
Max. Weighing Value of Additive | kg | 50Kg |
Aggregate Measuring Accuracy | % | ±2% |
Water Measuring Accuracy | % | ±1% |
The theoretical production of HZS90 stationary concrete batching plant is 90 square meters per hour. In actual production, the batching plant can't make the mixing station reach the theoretical production because of various subjective or objective reasons. Generally, it is about 80 square meters. Therefore, when purchasing the batching plant, we should pay attention to the concrete configuration of the station and inquire about the actual production of the stationary concrete batching plant. How much can be achieved so that the difference is too large to affect profits.
HZS90 concrete batching plant is a large and medium-sized concrete mixing equipment, all customers worry about whether the power is too high, in fact not. HZS90 concrete batching plant adopts a new energy-saving system, including controller, frequency conversion regulator, driving motor, mixer, ultrasonic ranging device, temperature sensor and weighing sensor. Ultrasonic ranging is used to judge the concrete situation in the mixer, and the motor is adjusted by frequency conversion regulator. It can effectively save energy and reduce production cost.
By introducing, you will know the output and power of concrete mixing plant. It is not difficult to see that the HZS90 batching plant has reasonable structure, safe and reliable operation, low energy consumption, good mixing quality and high efficiency, which is more popular with customers.
