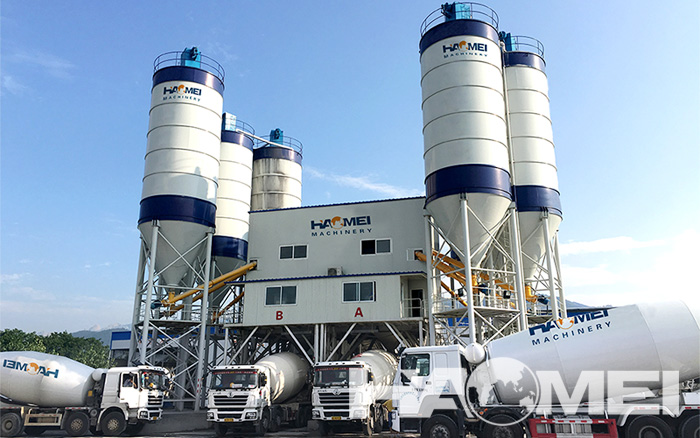

HZS180 Stationary Concrete Batching Plant

Place of Origin: Henan, China (Mainland)
Brand Name: HAOMEI
Model Number: HZS180
Condition: New
Capacity: 180m3/h
Main Mixer: JS3000
Power of Main Mixer: 110kw
Feeding Mode: Conveyor Belt
Mixing Time: 60s
Max Aggregate Size: 60/80mm
Discharging Height: 3.8m(for customers choice)
Aggregate Weighing Precision: 2%
Cement Weighing Precision: 1%
Water Weighing Precision: 1%
Additive Weighing Precision:1%
Control Mode: Automatic Control System/Central Console Control SystemTotal Power: kw

Detailed Product Description of HZS180 stationary concrete batching plant:
On the basis of combining advantages of various foreign mixing buildings&stations and advanced technology, HZS180 adopts modular structure design, which maintains convenient installation& removal and safe, comfortable operation, with good mixing effect and high efficiency. Besides, it adpots PLC automatic logical program control and host computer all-time tracking management, with safe and reliable operation and more facilitate maintaining.
With fully-closed tower, aggregate conveying system and dedusting system can effectively reduce environmental pollution arising from dust and noise.

Main features of HZS180 stationary concrete batching plant:
• Adopt combined structure and modular unit, convenient to install and remove;
• Mixing and aggregate lifting system adopt JS3000 double-shaft compulsory concrete mixer which offers high quality and efficient mixing;
• Aggregate batching system adopts PLD4800 concrete batcher which offers efficient and accurate measurement;
• Powder lot is electronic measured, highly accurate dosing;
•Water is flow-metering, simple and practical, highly accurate dosing.

Please note:
1. The total power doesn't include the power of cement screw;
2. Non-standard design could be made according to clients' demand;
3. The above-mentioned data could be changed due to the designing improvement, please check the updated configuration when purchasing.
