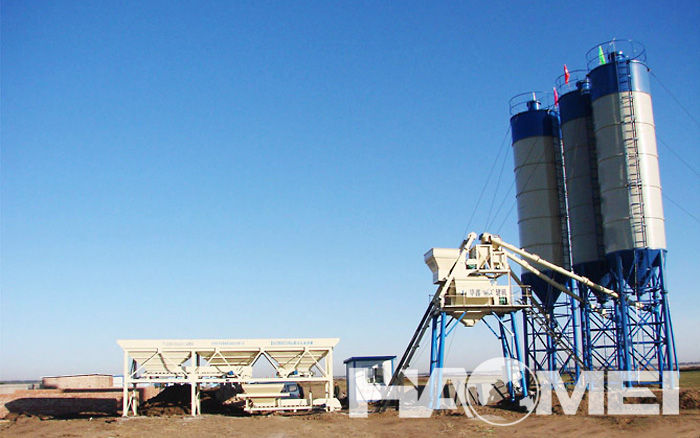

HZS25 Stationary Concrete Batching Plant

Place of Origin: Henan, China (Mainland)

Brand Name: HAOMEI

Model Number: HZS25

Condition: New

Capacity: 25m3/h

Main Mixer: JS500

Power of Main Mixer: 18.5kw

Feeding Mode: Lifting hopper

Mixing Time: 60s

Max Aggregate Size: 60/80mm

Discharging Height: 3.8m(for customers choice)

Aggregate Weighing Precision: 2%

Cement Weighing Precision: 1%

Water Weighing Precision: 1%

Additive Weighing Precision:1%

Control Mode: Automatic Control System/Central Console Control SystemTotal Power: kw

Detailed Product Description of HZS25 Stationary concrete batching plant

HZS25 concrete mixing plant is one of the small-sized plant series of HAOMEI company. It is semi-automatic concrete mixing block composed by feeding, batching, mixing, electrical control and steel structure components, suitable for small-scale construction projects, precast yard and commercial concrete companies.

Main features of HZS25 Stationary concrete batching plant

• Adopt combined structure and modular unit, convenient to install and remove;

• Mixing and aggregate lifting system adopt JS500 double-shaft compulsory concrete mixer which offers high quality and efficient mixing;

• Aggregate batching system adopts PLD800 concrete batcher which offers efficient and accurate measurement;

• Powder lot is electronic measured, highly accurate dosing;

•Water is flow-metering, simple and practical, highly accurate dosing.

Please note:

1. The total power doesn't include the power of cement screw;

2. Non-standard design could be made according to clients' demand;

3. The above-mentioned data could be changed due to the designing improvement, please check the updated configuration when purchasing.
