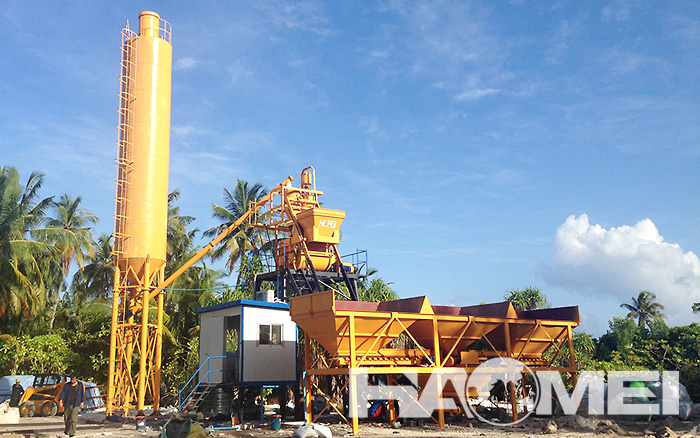

HZS35 Stationary Concrete Batching Plant

Place of Origin: Henan, China (Mainland)
Brand Name: HAOMEI
Model Number: HZS35
Condition: New
Capacity: 35m3/h
Main Mixer: JS750
Power of Main Mixer: 30kw
Feeding Mode: Lifting hopper
Mixing Time: 60s
Max Aggregate Size: 60/80mm
Discharging Height: 3.8m(for customers choice)
Aggregate Weighing Precision: 2%
Cement Weighing Precision: 1%
Water Weighing Precision: 1%
Additive Weighing Precision:1%
Control Mode: Automatic Control System/Central Console Control System


Detailed Product Description of HZS35 Stationary concrete batching plant"

HZS35 concrete mixing plant is one of the small-sized plant series of HAOMEI company. It is semi-automatic concrete mixing block composed by feeding, batching, mixing, electrical control and steel structure components, suitable for small-scale construction projects, precast yard and commercial concrete companies.
Main features of HZS35 Stationary concrete batching plant:
• Adopt combined structure and modular unit, convenient to install and remove;
• Mixing and aggregate lifting system adopt JS750 double-shaft compulsory concrete mixer which offers high quality and efficient mixing;
• Aggregate batching system adopts PLD1200 concrete batcher which offers efficient and accurate measurement;
• Powder lot is electronic measured, highly accurate dosing;
•Water is flow-metering, simple and practical, highly accurate dosing.
Please note:
1. The total power doesn't include the power of cement screw;
2. Non-standard design could be made according to clients' demand;
3. The above-mentioned data could be changed due to the designing improvement, please check the updated configuration when purchasing.
