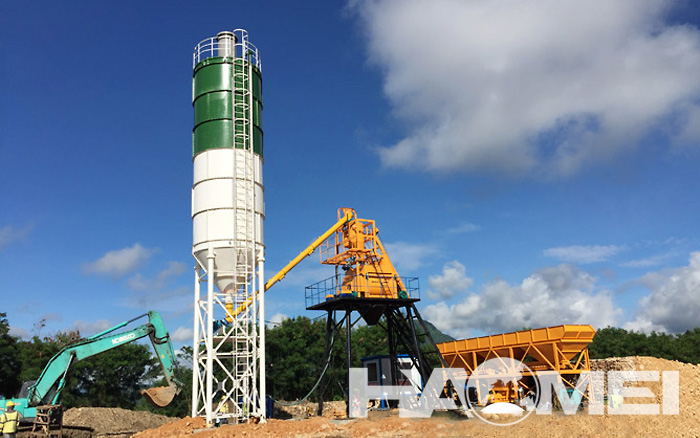

HZS50 Stationary Concrete Batching Plant

Place of Origin: Henan, China (Mainland)
Brand Name: HAOMEI
Model Number: HZS50
Condition: New
Capacity: 50m3/h
Main Mixer: JS1000
Power of Main Mixer: 37kw
Feeding Mode: Lifting hopper
Mixing Time: 60s
Max Aggregate Size: 60/80mm
Discharging Height: 3.8m(for customers choice)
Aggregate Weighing Precision: 2%
Cement Weighing Precision: 1%
Water Weighing Precision: 1%
Additive Weighing Precision:1%
Control Mode: Automatic Control System/Central Console Control SystemTotal Power: kw

Detailed Product Description of HZS50 Stationary concrete batching plant:
This HZS50 plant adopts JS series twin-shaft compulsory mixer, producing homogeneous concrete with good quality in short time. The easily-damaged parts could last for long time, convenient to operate and maintain. It applied the latest design for electronic weighing, computer control and digital display. The electronic weighing system has a buffer device and automatic volume compensation with high accuracy. The sand and gravel feeding system applied inclined belt with great width, the maintenance walkways is installed. It is the ideal choice for producing high-quality concrete.

Main features of HZS50 Stationary concrete batching plant:
• Adopt combined structure and modular unit, convenient to install and remove;
• Mixing and aggregate lifting system adopt JS1000 double-shaft compulsory concrete mixer which offers high quality and efficient mixing;
• Aggregate batching system adopts PLD1600 concrete batcher which offers efficient and accurate measurement;
• Powder lot is electronic measured, highly accurate dosing;
•Water is flow-metering, simple and practical, highly accurate dosing.

Please note:
1. The total power doesn't include the power of cement screw;
2. Non-standard design could be made according to clients' demand;
3. The above-mentioned data could be changed due to the designing improvement, please check the updated configuration when purchasing.
