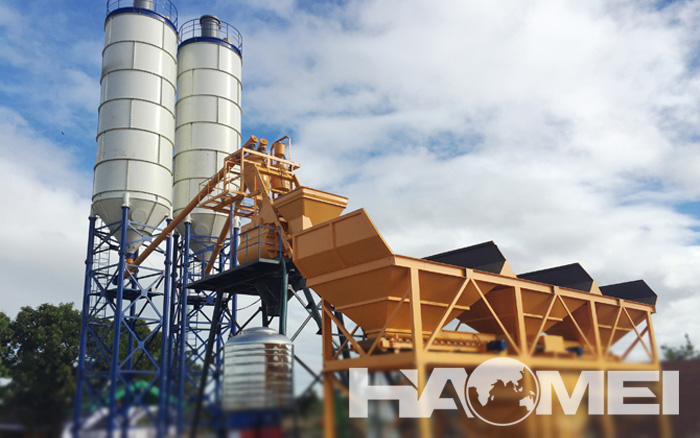

HZS75 Stationary Concrete Batching Plant

Place of Origin: Henan, China (Mainland)
Brand Name: HAOMEI
Model Number: HZS75
Condition: New
Capacity: 75m3/h
Main Mixer: JS1500
Power of Main Mixer: 44kw
Feeding Mode: Lifting hopper
Mixing Time: 60s
Max Aggregate Size: 60/80mm
Discharging Height: 3.8m(for customers choice)
Aggregate Weighing Precision: 2%
Cement Weighing Precision: 1%
Water Weighing Precision: 1%
Additive Weighing Precision:1%
Control Mode: Automatic Control System/Central Console Control System Total Power: kw

Detailed Product Description of HZS75 stationary concrete batching plant:
The mixer for HZS75 batching plant is JS1500 twin-shaft concrete mixer, having good mixing quality and high efficiency.
The dosing of aggregate, cement, water, liquid additive are measured by weighing method, high batching accuracy.
The electrical control system adopts the imported components. It has complete funtions, reliable performance and convenient operation. The control centre is installed on the ground in order to eliminate the vibration to electric control system.

Main features of HZS75 stationary concrete batching plant:
• Adopt combined structure and modular unit, convenient to install and remove;
• Mixing and aggregate lifting system adopt JS1500 double-shaft compulsory concrete mixer which offers high quality and efficient mixing;
• Aggregate batching system adopts PLD2400 concrete batcher which offers efficient and accurate measurement;
• Powder lot is electronic measured, highly accurate dosing;
•Water is flow-metering, simple and practical, highly accurate dosing.

Please note:
1. The total power doesn't include the power of cement screw;
2. Non-standard design could be made according to clients' demand;
3. The above-mentioned data could be changed due to the designing improvement, please check the updated configuration when purchasing.
