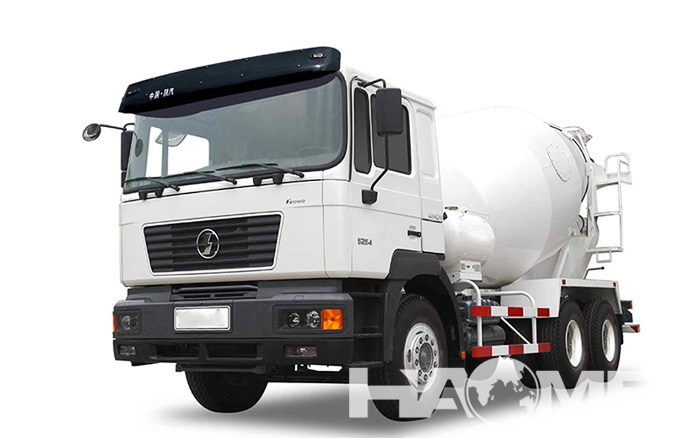

14m3 Concrete Mixer Truck
Product Advantage of 14m3 Concrete Mixer Truck For Sale:
1. High-intensity drum material, featuring better wear-resistance and long service life;
2. Optimized mixing blades, low material residue;
3. High-quality parts, reliable running;
4. Excellent performance and convenient operation;
5. Imported original hydraulic system.
Technical parameters of 14m3 Concrete Mixer Truck For Sale:
| Model | HM14-D | |
| Specification | Unit | Value |
| Mixing Capacity | m³ | 14 |
| Tank Volume | m³ | 20.1 |
| Feeding Speed | m³/min | ≥3.5 |
| Discharging Speed | m³/min | ≥3 |
| Residual Ratio of Discharging | % | ≤0.5% |
| Water Supply System | Air pressure | |
| Water Tank Volume | L | 400 |
| Overall Dimension | mm | 10300*2496*3920 |
| Chassis Model | HOWO | |
| Clutch | φ | φ430 Monolithic dry type |
| Min Ground Clearance | mm | 245 |
| Max Speed | km/h | 90 |
| Engine Max Output Power | kw | 340 |
| Emission Standard | Euro Ⅲ | |
| Rated Load | kgs | 16000 |
| Overall Weight | kgs | 31000 |
| Wheelbase | mm | 1800+3200+1350 |
