Successful installation of HZS50 concrete batching plant in

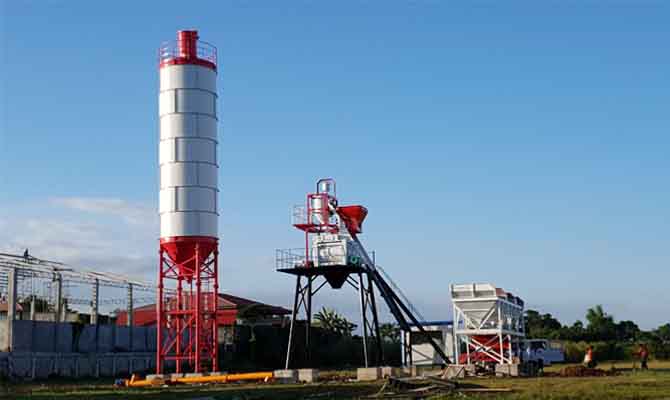

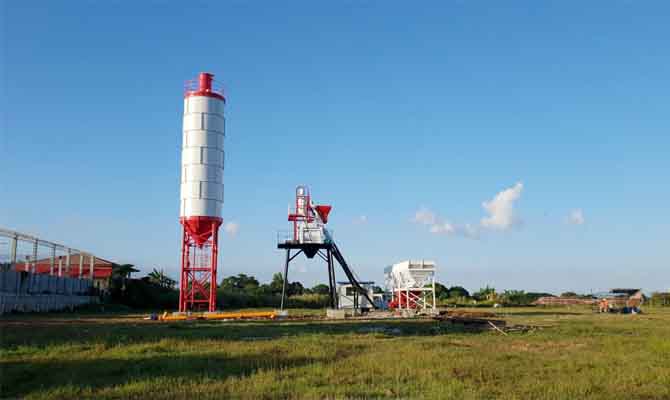

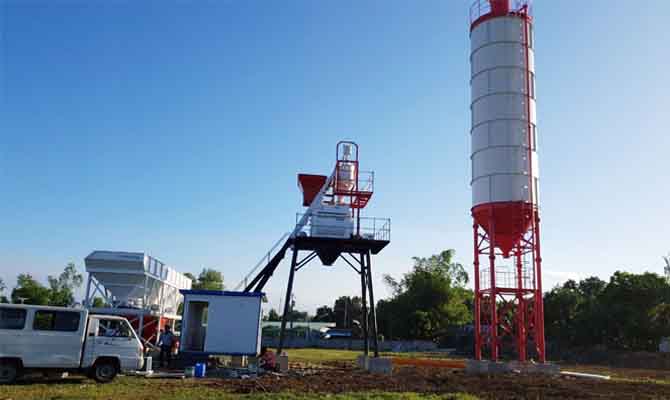

Successful installation of HZS50 stationary concrete batching plant in Philippines
| Model | HZS50 concrete batch plant |
| Rated productivity | 50m3/h |
| Main mixer | JS1000 |
| Power of main mixer | 37kw |
| Max. Aggregate diameter | 60-80mm |
| Delivery capacity | 1m3 |
| Feeding mode | Lift hopper |
| Batching unit | PLD1600 |
| Measuring scope& accuracy of aggregate | 2000kg +/-2% |
| Measuring scope& accuracy of cement | 800kg +/-1% |
| Measuring scope& accuracy of water(by flow meter) | 300kg +/-1% |
| Discharge height | 3.8m |
| Outline dimension(Operational state ) (L*W*H) | 32201*16000*17245 mm |
| General power | 72.5kw |
| Total weight | 24t |
| Control mode | Centralized conctrol |
| Cement silos(Optional parts) | 1*50T |
| Screw conveyor (Optional parts) |
1* diameter 219 screw conveyor |
